Hinged chain plates

From 18,85 € TTC

Remarkable workload in any position

Retractable and small footprint

corrosion resistance

Multi-purpose: fasteners, shrouds, pulleys, lifelines...

ISO15085 compliant: recommended for the installation of lifelines and harness anchor points

Choose your reference

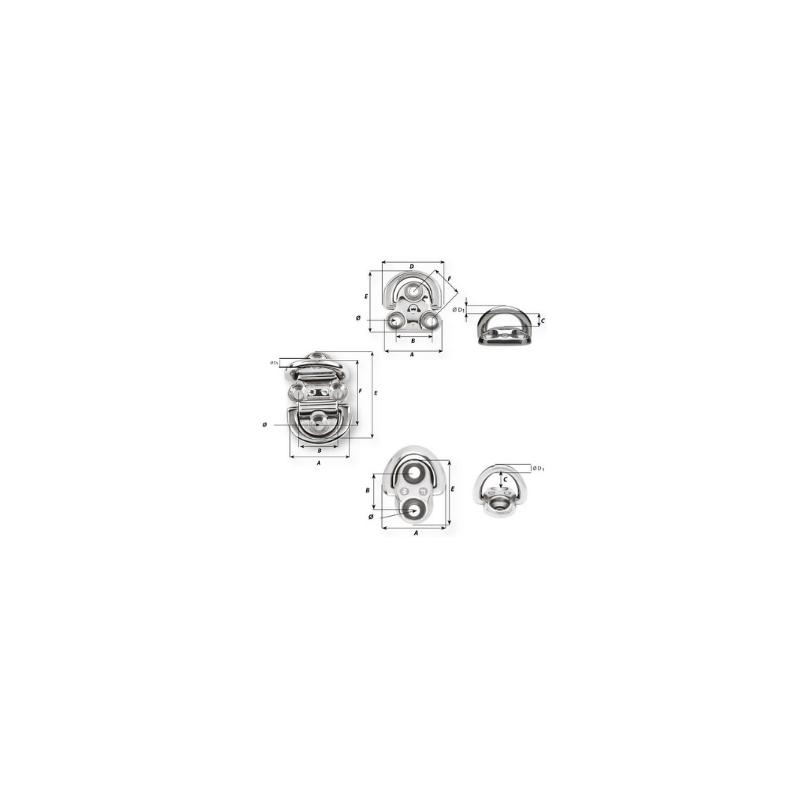

Ref.	A	B	Workload	E	C	D	D1	Ø	R. r. theoretical	Unit price	Weight	Quantity
6684	40 mm	23.4 mm	750kg	40 mm	min 15		6	7	1600kg	18,85 €	56 g	- +
6604	45 mm	27 mm	1440kg	41 mm	15 mm	44 mm	6	6	3000kg	29,06 €	78 g	- +
6605	57 mm	35 mm	2400kg	51 mm	18 mm	59 mm	8	8	5000kg	36,40 €	165 g	- +
6606	75 mm	45 mm	4080kg	68 mm	25 mm	80 mm	10	10	9000kg	52,21 €	355 g	- +
56504	45 mm	27 mm	1600kg	40 mm	14 mm		6	6.4	3000kg	135,70 €	40 g	- +
56505	59 mm	35 mm	2720kg	50 mm	17 mm		8	8.5	5000kg	194,99 €	80 g	- +
56506	75 mm	45 mm	4560kg	65 mm	23 mm		10	10.5	8500kg	269,98 €	174 g	- +
6564	45 mm	27 mm	1440kg	75 mm	14 mm		6	6.4	2500kg	63,91 €	126 g	- +
6565	59 mm	35 mm	2400kg	81 mm	17 mm		8	8.5	4300kg	76,14 €	252 g	- +
6566	75 mm	45 mm	4560kg	104 mm	23 mm		10	10.5	9000kg	112,21 €	494 g	- +
