From 35,32 € TTC
Terminalswageless: cable on one side, UNF threaded rodRIGHT PITCHof the other. Allows adaptation and assembly on site without any tools other than wrenches.
NORSEMAN has recently stopped its production, we have developed this similar product.
Can be used with 1*19 stainless steel cable, for DYFORM (or COMPACTED) cable: on request only.
316 grade stainless steelAssembly principle
Availability date: 06/18/2015
NORSEMAN" UNF threaded tip
Terminalswageless: cable on one side, UNF threaded rodRIGHT PITCHof the other. Allows adaptation and assembly on site without any tools other than wrenches.
NORSEMAN has recently stopped its production, we have developed this similar product.
Can be used with 1*19 stainless steel cable, for DYFORM (or COMPACTED) cable: on request only.
316 grade stainless steelAssembly principle
Recipient :
* Required fields
or Cancel

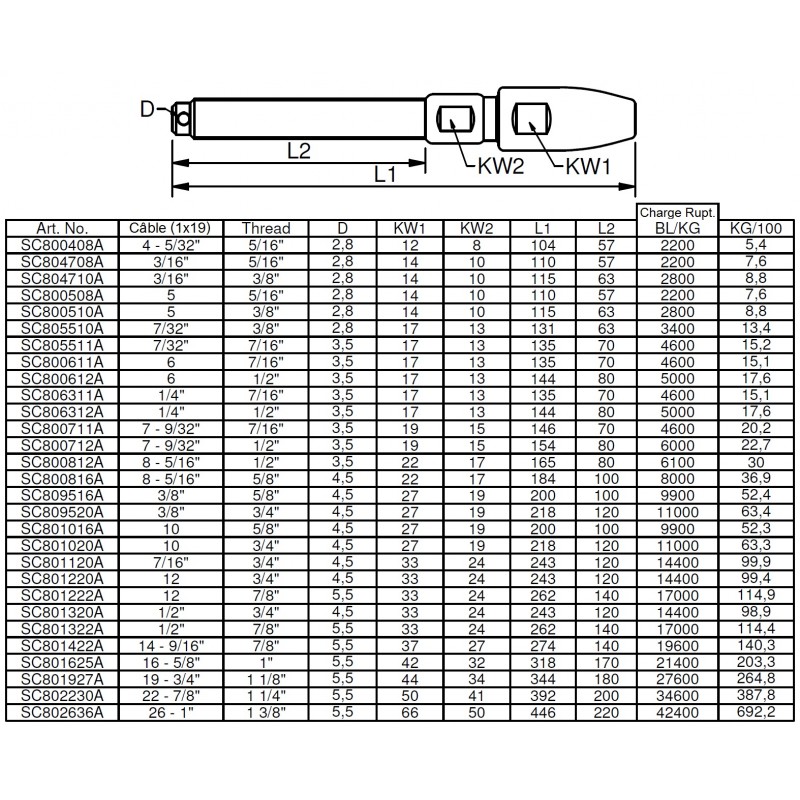

| Ref. | cable Ø | D Thread | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|
| SC800408A | 4mm | 5/16" | 2200 kg | 35,32 € | 60 g | ||
| SC804708A | 3/16" | 5/16" | 2200 kg | 32,31 € | 85 g | ||
| SC804710A | 3/16" | 3/8" | 2750 kg | 33,19 € | 98 g | ||
| SC800508A | 5mm | 5/16" | 2200 kg | 41,81 € | 86 g | ||
| SC800510A | 5mm | 3/8" | 2750 kg | 42,31 € | 98 g | ||
| SC800611A | 6mm | 7/16" | 4500 kg | 51,82 € | 165 g | ||
| SC800612A | 6mm | 1/2" | 4500 kg | 52,44 € | 185 g | ||
| SC800711A | 7mm | 7/16" | 4500 kg | 52,49 € | 220 g | ||
| SC800712A | 7mm | 1/2" | 6000 Kg | 66,90 € | 240 g | ||
| SC800812A | 8mm | 1/2" | 6000 Kg | 78,73 € | 320 g | ||
| SC800816A | 8mm | 5/8" | 8,000 kg | 79,56 € | 385 g | ||
| SC801016A | 10mm | 5/8" | 9800 kg | 112,56 € | 540 g | ||
| SC801020A | 10mm | 3/4" | 11000 kg | 118,80 € | 650 g | ||
| SC801220A | 12mm | 3/4" | 14500 kg | 189,60 € | 1100 g | ||
| SC801222A | 12mm | 7/8" | 17,000 kg | 183,75 € | 1250 g |
