From 62,22 € TTC
Terminalswageless: cable on one side, long UNF threaded rod on the other. Allows adaptation and assembly on site without any tools other than wrenches.
Very useful to recover a shroud cut too short.
NORSEMAN has recently stopped its production, we have developed this similar product.
Can be used with stainless steel cable (1x19) (for DYFORM or COMPACTED cable: on request).
316 grade stainless steelAssembly principle
Availability date: 06/18/2015

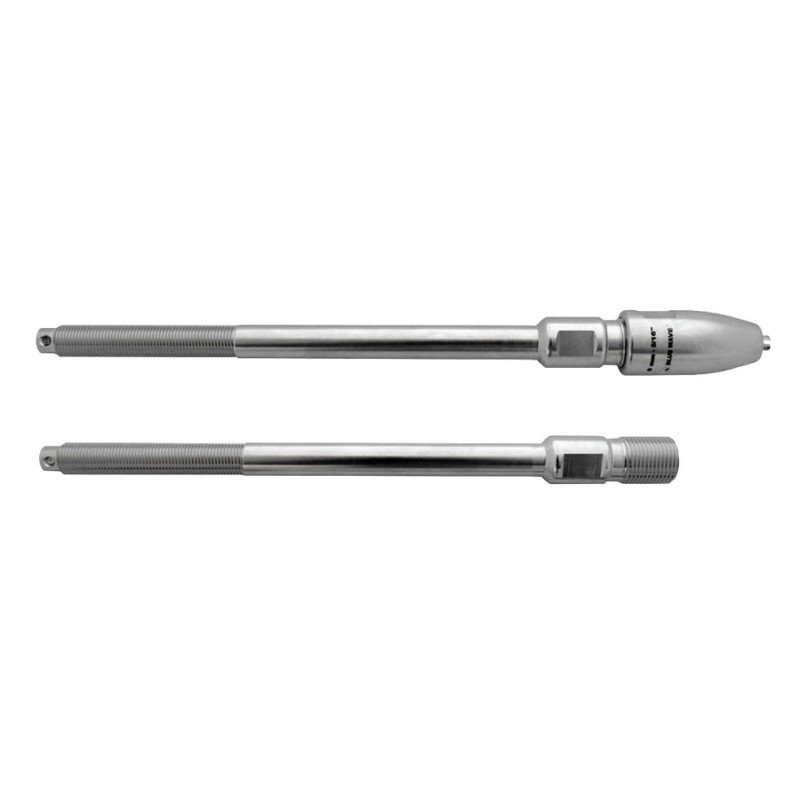

“NORSEMAN" long UNF threaded end
Terminalswageless: cable on one side, long UNF threaded rod on the other. Allows adaptation and assembly on site without any tools other than wrenches.
Very useful to recover a shroud cut too short.
NORSEMAN has recently stopped its production, we have developed this similar product.
Can be used with stainless steel cable (1x19) (for DYFORM or COMPACTED cable: on request).
316 grade stainless steelAssembly principle
Recipient :
* Required fields
or Cancel

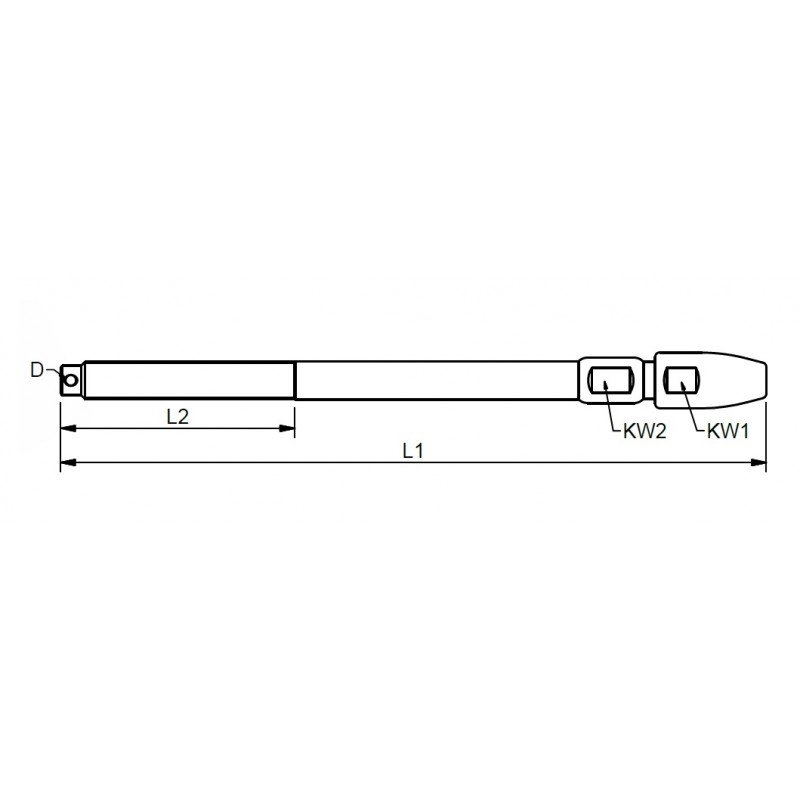

| Ref. | D | cable Ø | KW | L1 | L2 | D Thread | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC800611AL | 3.5 | 6mm | 17 | 236.0 | 70.0 | 7/16" | 4600 Kg | 62,22 € | 145 g | ||
| SC800612AL | 3.5 | 6mm | 17 | 240.0 | 80.0 | 1/2" | 5000 kg | 52,82 € | 280 g | ||
| SC800711AL | 3.5 | 7mm | 19 | 255.0 | 70.0 | 7/16" | 4600 Kg | 67,36 € | 310 g | ||
| SC800712AL | 3.5 | 7mm | 19 | 263.0 | 80.0 | 1/2" | 6000 Kg | 80,29 € | 350 g | ||
| SC800812AL | 3.5 | 8mm | 22 | 291.0 | 80.0 | 1/2" | 6100 Kg | 79,26 € | 320 g | ||
| SC800816AL | 4.5 | 8mm | 22 | 312.0 | 100.0 | 5/8" | 8,000 kg | 80,08 € | 580 g | ||
| SC801016AL | 4.5 | 10mm | 27 | 343.0 | 100.0 | 5/8" | 9900 Kg | 135,07 € | 760 g | ||
| SC801020AL | 4.5 | 10mm | 27 | 361.0 | 120.0 | 3/4" | 11000 kg | 119,59 € | 1000 g | ||
| SC801220AL | 4.5 | 12mm | 33 | 411.0 | 120.0 | 3/4" | 14400 Kg | 190,88 € | 1420 g | ||
| SC801222AL | 5.50 | 12mm | 33 | 444.0 | 140.0 | 7/8" | 17,000 kg | 235,80 € | 1760 g |
