From 11,55 € TTC
Closed body turnbuckle (tensioner), equipped with an eye and a crimp terminal.
AISI316.
All applications, except boating (because of the closed body, salt trap...)
Availability date: 06/18/2015

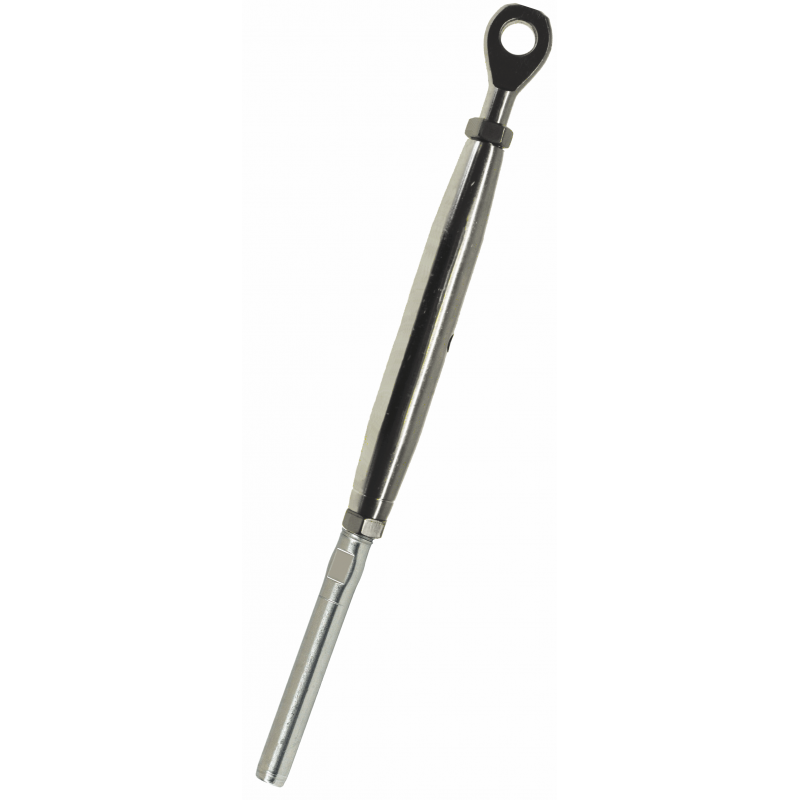

Crimp closed body turnbuckle with eye/terminal - INOX system
Closed body turnbuckle (tensioner), equipped with an eye and a crimp terminal.
AISI316.
All applications, except boating (because of the closed body, salt trap...)
Recipient :
* Required fields
or Cancel
| Ref. | D1 | D2 | LH thread | Ø | KW | L1 | L2 | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XIS_65036 | 6.4 | 6.5 | M6 | 3 mm | 5 | 234.0 | 166.0 | 1000 kg | 11,55 € | 65 g | ||
| XIS_65046 | 7.50 | 6.5 | M6 | 4 mm | 6 | 244.0 | 176.0 | 1100 kg | 11,97 € | 75 g | ||
| XIS_65048 | 7.50 | 8.5 | M8 | 4 mm | 6 | 282.0 | 202.0 | 1700 kg | 15,50 € | 128 g | ||
| XIS_65058 | 9.0 | 8.5 | M8 | 5 mm | 7 | 288.0 | 208.0 | 2000 kg | 17,21 € | 145 g | ||
| XIS_65050 | 9.0 | 10.5 | M10 | 5 mm | 7 | 311.0 | 227.0 | 2200 kg | 21,39 € | 250 g | ||
| XIS_65060 | 12.58 | 10.5 | M10 | 6 mm | 11 | 326.0 | 242.0 | 3000 kg | 25,80 € | 245 g | ||
| XIS_65062 | 12.58 | 13.0 | M12 | 6 mm | 11 | 379.0 | 271.0 | 3000 kg | 32,95 € | 395 g | ||
| XIS_65082 | 16.00 | 13.0 | M12 | 8 mm | 14 | 400.0 | 292.0 | 5000 kg | 43,02 € | 515 g | ||
| XIS_65086 | 16.00 | 14.5 | M16 | 8 mm | 14 | 478.0 | 350.0 | 5300kg | 66,98 € | 760 g |
